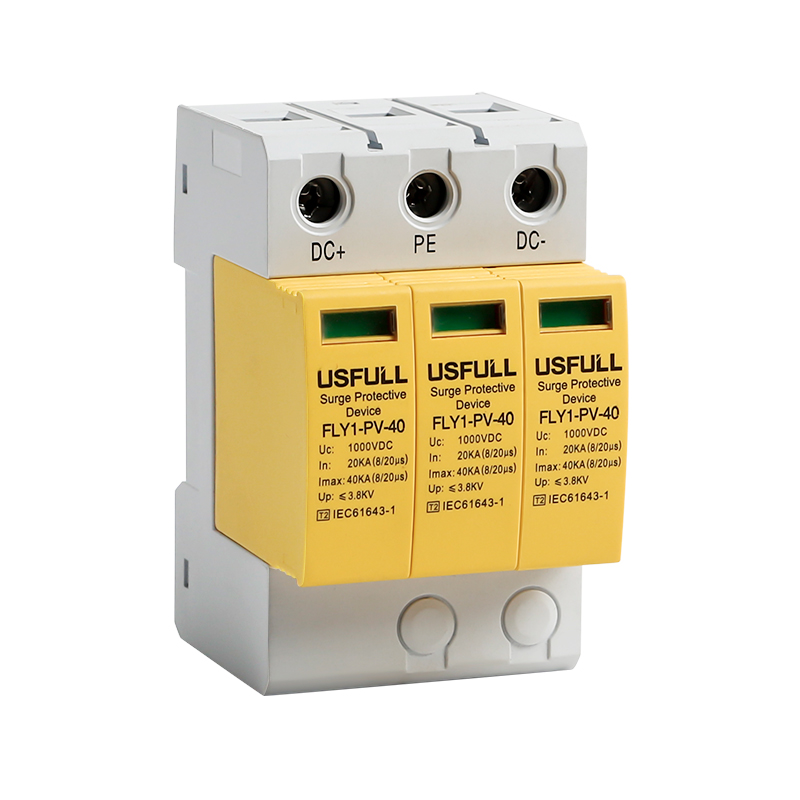

USFULL FLY1-PV SPD

USFULL FLY1-PV SPD is PV standard surge protect device, which protects PV system and inverter from thunder and lightning, thus protect the electrical appliance.

Application

Detailed instruction on surface, easy to get all necessary specifications. Clear for users to wiring easily.
For any further questions, welcome to send inquiry and let us know!

USFULL DC Surge Protective Device is used to protect Photovoltaic System and inverter from thunder and lightning, thus protect the electrical appliance.

USFULL FLY1-PV SPD

Using high quality material, flame retardant without peculiar smell. Every part selection, every step of processing, every factory inspection is strictly controlled, and pursuing perfection.

USFULL FLY1-PV SPD

USFULL FLY1-PV SPD is PV standard surge protect device, which protects PV system and inverter from thunder and lightning, thus protect the electrical appliance. All the material selection and manufacture are strictly followed by ISO standard, ensuring the perfect quality in solar application.

USFULL FLY1-PV SPD

When the surge overvoltage occurs in a solar system due to a lightning strike or other reasons, the SPD will act immediately in nanoseconds and the surge overvoltage will be introduced into the earth, thereby protecting the electrical equipment.

USFULL FLY1-PV SPD

Dismountable module adapts to various needs. Two-body design, modules can be replaced, reducing necessary costs, saving expenses and making life more reasonable.

The USFULL surge protect device is suitable for din rail installation, convenient to use.

Diversified color and design available, we can offer you good performance and also your favorable color choice.

USFULL FLY1-PV SPD
USFULL FLY1-PV SPD
USFULL FLY1-PV SPD

Detailed instruction on surface, easy to get all necessary specifications. Clear for users to wiring easily.

For any further questions, welcome to send inquiry and let us know!

Specification:

SPECIFICATION
Item DC Surge Protective Device
Code FLY1-PV-C40
Pole 2P 3P
Voltage 12VDC- 600VDC 12VDC- 1000VDC
In(8/20)us(KA) 20KA
Imax(8/20)us(KA) 40KA
Standard IEC/EN61643
Type II
Characteristic Curve B,C,D
Working Temperature -5′ to +40
Protection Degree IP20
Electrical life More than 8000times
Mechanical life More than 2000times
Dimension(W)X(H)X(D) 36x90x68 54x90x68
Installation 35MM DIN RAIL
